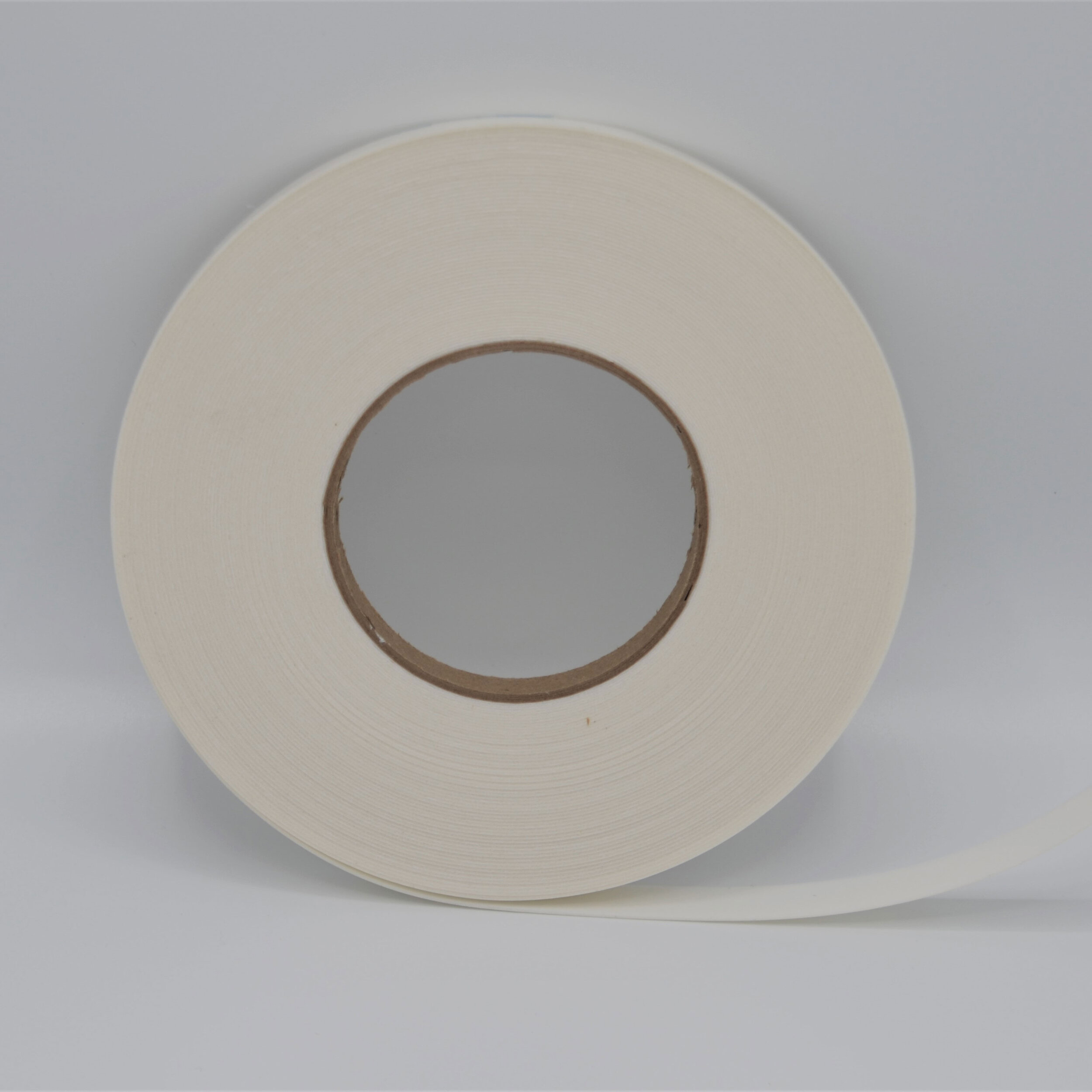

Single-Sided Polyethylene Foam Tapes
Polyethylene single-sided foam tapes are are self-wound thick tapes with a pressure sensitive adhesive on one side of a cross-linked polyethylene foam backing. These closed cell products come with either rubber based or acrylic based pressure sensitive adhesives depending your application requirements. Polyethyene foam tapes are the economical choice for sealing and gasketing where moisture seal or chemical resistance is required. They come in a variety of thicknesses.
Applications include: Sealing and cushioning gaskets, door gaskets, spacers, insulation parts
- Economical closed-cell foam tape
- Excellent chemical resistance
- Good insulation characteristics
- Seals moisture
- General purpose foam tape
| Product | Comments | Vendor | Foam Type | Color | Adhesive | Thickness (Inches) | Foam Density | Thermal Conductivity (K Factor) | Service Temperature (°F) | Flammability |
| 2800 | Thinnest option | EMI | Cross-linked PE | Natural White | Rubber | 0.031 | 5 lb/ft3 (80 kg/m3) | 0.30 | - 70 - 175 | |
| 7104 | Light duty applications | EMI | Cross-linked PE | Natural or Charcoal | Water based Acrylic | 0.125, 0.188, 0.250, 0.375, 0.500 | 2 lb/ft3 (32 kg/m3) | 0.26 | - 70 - 175 | |
| 7109 | Best overall adhesive | EMI | Cross-linked PE | Natural or Charcoal | General Purpose Acrylic | 0.125, 0.188, 0.250, 0.375, 0.500 | 2 lb/ft3 (32 kg/m3) | 0.26 | - 70 - 175 | |
| 7109 FR | Fire Retardant | EMI | Cross-linked FR PE | Charcoal | General Purpose Acrylic | 0.125, 0.188, 0.250, 0.375, 0.500 | 2 lb/ft3 (32 kg/m3) | 0.26 | - 70 - 175 | FMVSS302, UL 94 HF-1 |
