3M™ Glass Cloth Electrical Tape 69

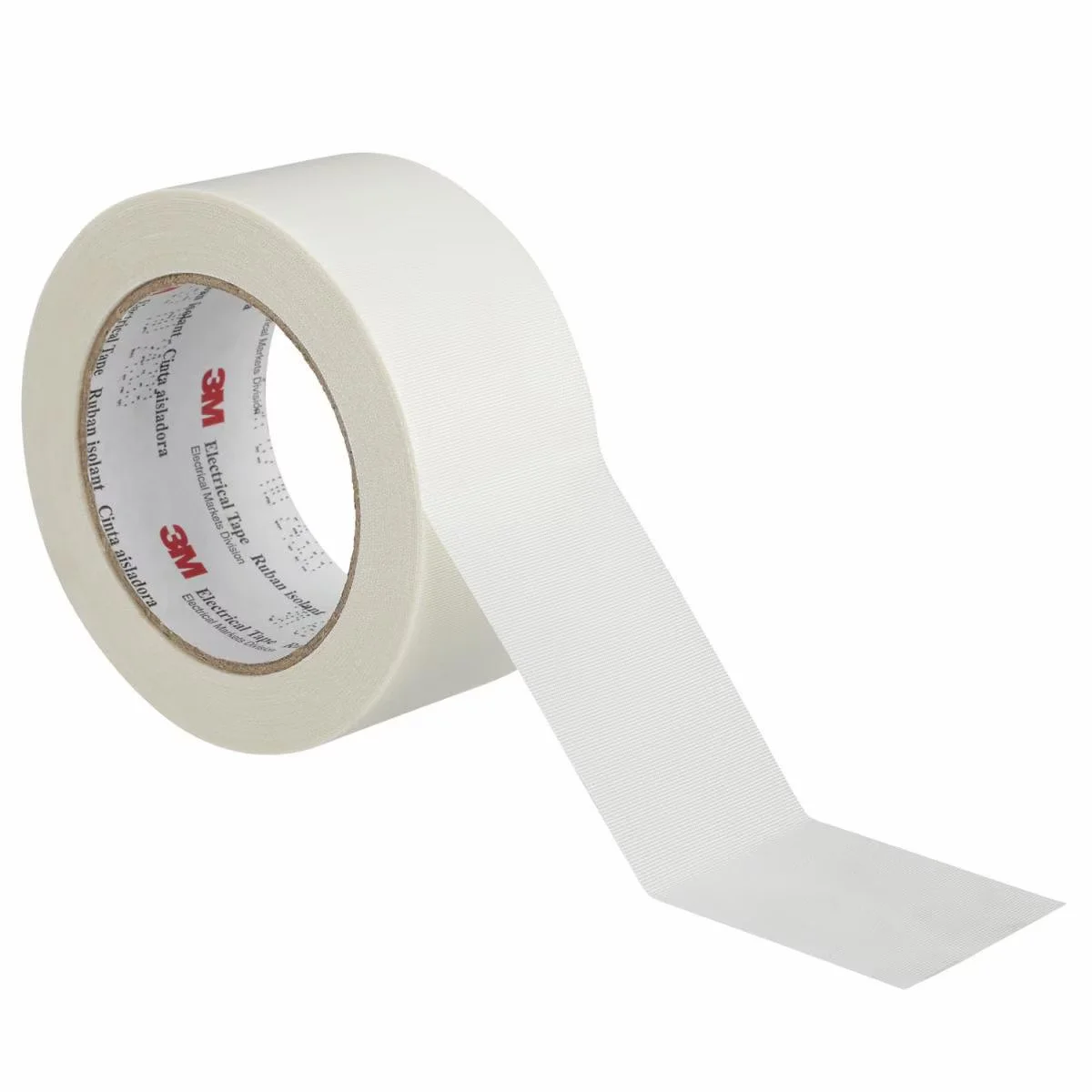

3M™ Glass Cloth Electrical Tape 69 is a white, 7-mil (0.178 mm) tape with a 5.5-mil (0.140 mm) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame-retardant, thermosetting silicone pressure-sensitive adhesive. The adhesive requires no heat, moisture, or other preparation for application. It's designed for UL applications rated up to 600 volts in dry locations and is commonly used in coil, transformer, and motor applications.
Applications include: Outer wrap for bobbin-wound coils, banding for arbor-wound coils, lead pad hold-down, end turns, lead anchor and connections
- Thermosetting silicone adhesive
- Non-corrosive
- Flame retardant
- No heat or moisture preparation required
- Rated to 200°C (392°F) UL, 180°C (356°F) CSA
- Flame Retardant, UL 510: Pass
- UL Component Recognized
- CSA Certified
| Property | Specification |
| Adhesive Material | Thermosetting silicone |
| Backing (Carrier) Material | Glass cloth |
| Total Thickness (Imperial) | 7 mil |
| Total Thickness (Metric) | 0.18 mm |
| Backing (Carrier) Thickness (Imperial) | 5.51 mil |
| Backing (Carrier) Thickness (Metric) | 0.14 mm |
| Adhesion to Steel (N/cm) | 3.3 |
| Adhesion to Steel (oz/in) | 30.16 |
| Adhesion Test Method | ASTM D3330 |
| Tensile Strength (N/cm) | 263 |
| Tensile Strength (lb/in) | 150.18 |
| Elongation at Break | 5% |
| Product Color | White |
| Dielectric Strength | 2000 V |
| Insulation Resistance | 50 x 10⁶ Ω |
| Electrolytic Corrosion Factor | 0.90 |
| Certifications | UL510A, CSA Certified: C22.2 No. 66, MIL-I-19166C | CID A-A-59770A (2007) Type IV (GFT) |
| UL File | UL File E17385 , CSA File 093411 |
| Maximum Operating Temperature (Celsius) | 200 °C |
| Maximum Operating Temperature (Fahrenheit) | 392 °F |
| Adhesive Thickness (mm) | 0.0380 |
