3M 365

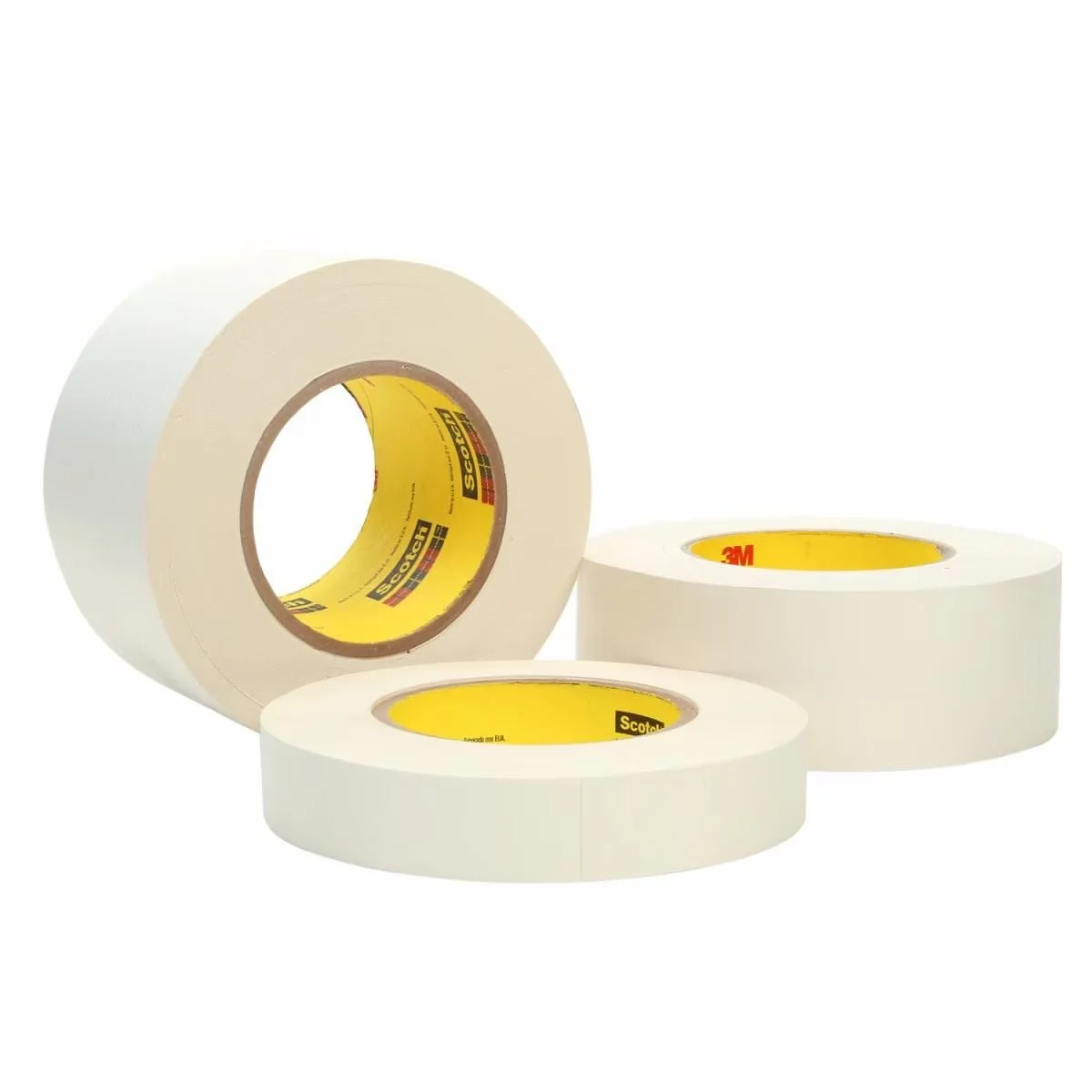

3M™ Glass Cloth Electrical Tape 365

3M™ Glass Cloth Tape 365 is a thermosetting rubber-resin adhesive tape coated with a strong, conformable glass backing for many applications requiring high adhesion to a variety of surfaces. The adhesive provides good initial adhesion and tack. When subjected to a thermosetting cycle (achieved by ironing or heating the backing after application), it crosslinks to provide greater adhesion and bonding, higher solvent resistance, and higher heat resistance. High adhesion is obtained by optimizing the time, temperature, and pressure of the applied heat. The glass cloth backing delivers high tensile strength, resists shrinking and rotting, and remains firm at high temperatures.

Applications include: Splicing or insulation applications requiring high tensile strength at elevated temperatures; corrosion-resistant wrap for stainless-steel hot-air ducts; splicing materials with rough surfaces or low internal strength, such as roofing felt, fiberglass, or textiles



  • Thermoset rubber-resin adhesive
  • Crosslinks under heat for greater bonding
  • Good solvent resistance
  • High tensile strength backing
  • Resists shrinking and rotting
  • Firm at high temperature
  • Poly-lined version available (3650)
Property Specification
Adhesive Material Thermosetable rubber-resin
Backing (Carrier) Material Glass cloth
Total Thickness (Imperial) 7.87 mil
Total Thickness (Metric) 0.20 mm
Backing (Carrier) Thickness (Imperial) 4.72 mil
Backing (Carrier) Thickness (Metric) 0.12 mm
Adhesion to Steel (N/cm) 5.7
Adhesion to Steel (oz/in) 52.09
Adhesion Test Method ASTM D3330
Tensile Strength (N/cm) 243
Tensile Strength (lb/in) 138.76
Elongation at Break 7%
Product Color White
Certifications FAR 25.853(a)
Maximum Operating Temperature (Celsius) 232 °C
Maximum Operating Temperature (Fahrenheit) 450 °F
Minimum Operating Temperature (Celsius) -29 °C
Minimum Operating Temperature (Fahrenheit) -20 °F
Adhesive Thickness (mm) 0.0800
Standard Roll Length (m) 55
