3M 398FR

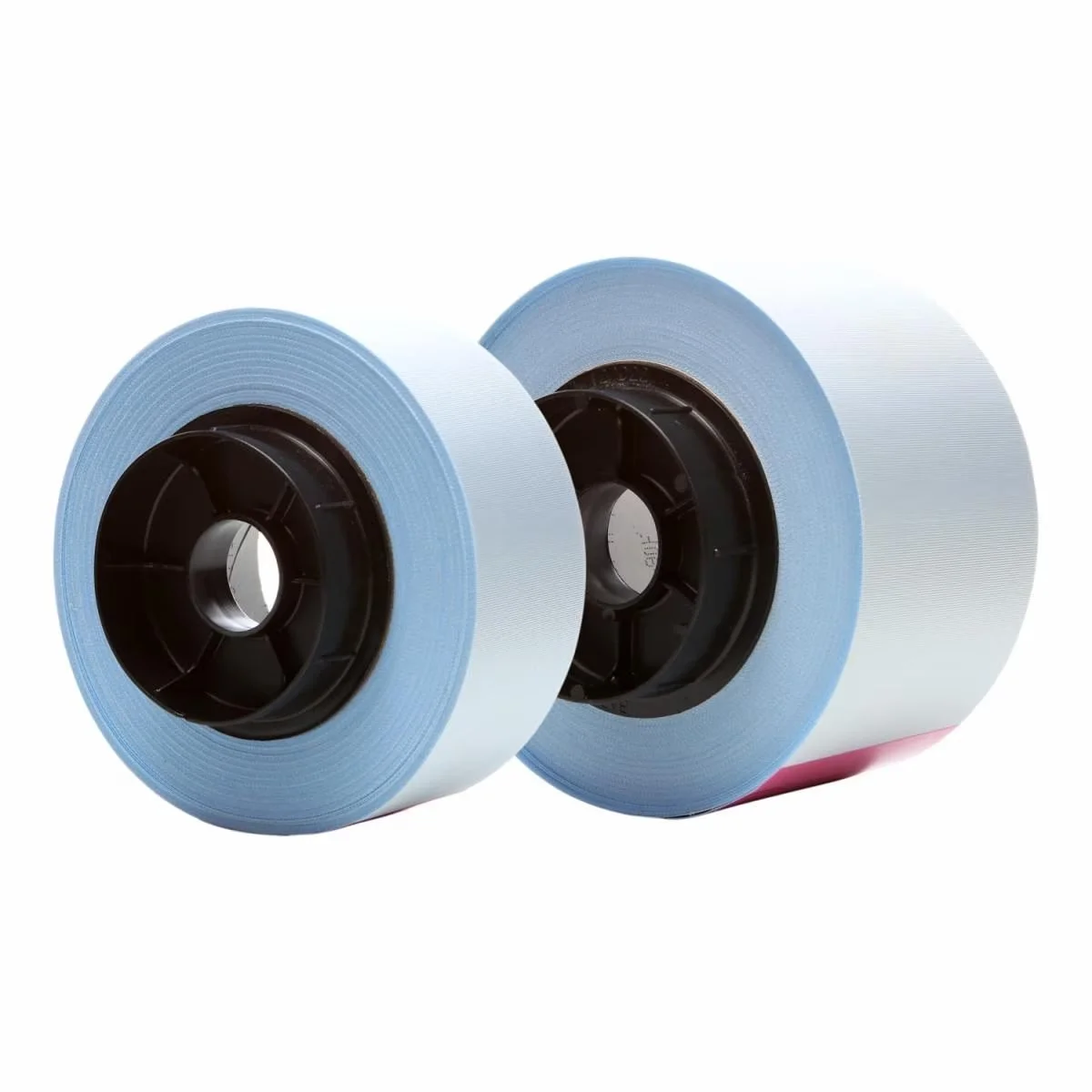

3M™ Glass Cloth Tape 398FR/FRP

3M™ Glass Cloth Tape 398FR/FRP features an acrylic adhesive for high-adhesion applications, an abrasion-resistant backing, and flame-retardant properties. It's typically used to seal aircraft cargo bay panels, providing a permanent seal. The tape meets the flame-retardancy requirements of FAR 25.853 and FAR 25.855. It also meets the requirements of and can be qualified to Boeing material specification BMS 5-146 Type I, Class I, Grade A. The acrylic adhesive has excellent long-term aging properties, making it ideal for many permanent applications.

Applications include: Sealing thermal and acoustic insulation panels where high adhesion and flame retardancy are required; aircraft window sealing; duct sealing and seat repair; protection of wire harnesses, electrical cables, or hoses from temperature extremes and abrasion; marine applications; and general industrial uses



  • Acrylic adhesive
  • Abrasion-resistant backing
  • Flame retardant
  • Excellent long-term aging properties
  • Antimony-free formulation
  • High conformability
  • EU compliant per Directive 2003/11/EC (restriction on penta-BDE and octa-BDE)
Property Specification
Adhesive Material Acrylic
Backing (Carrier) Material Glass cloth
Total Thickness (Imperial) 7 mil
Total Thickness (Metric) 0.18 mm
Backing (Carrier) Thickness (Imperial) 5 mil
Backing (Carrier) Thickness (Metric) 0.13 mm
Adhesion to Steel (N/cm) 4.2
Adhesion to Steel (oz/in) 38.38
Adhesion Test Method ASTM D3330
Tensile Strength (N/cm) 227.60
Tensile Strength (lb/in) 130
Elongation at Break 7%
Product Color White
Certifications FAR Part 25.853(a), FAR Part 25.855(d) | Boeing BMS 5-146 Type I, Class I, Grade A, EU compliant per Directive 2003/11/EC
Maximum Operating Temperature (Celsius) 121 °C
Maximum Operating Temperature (Fahrenheit) 250 °F
Minimum Operating Temperature (Celsius) -29 °C
Minimum Operating Temperature (Fahrenheit) -20 °F
Adhesive Thickness (mm) 0.0500
Liner Blue HD polyethylene film
