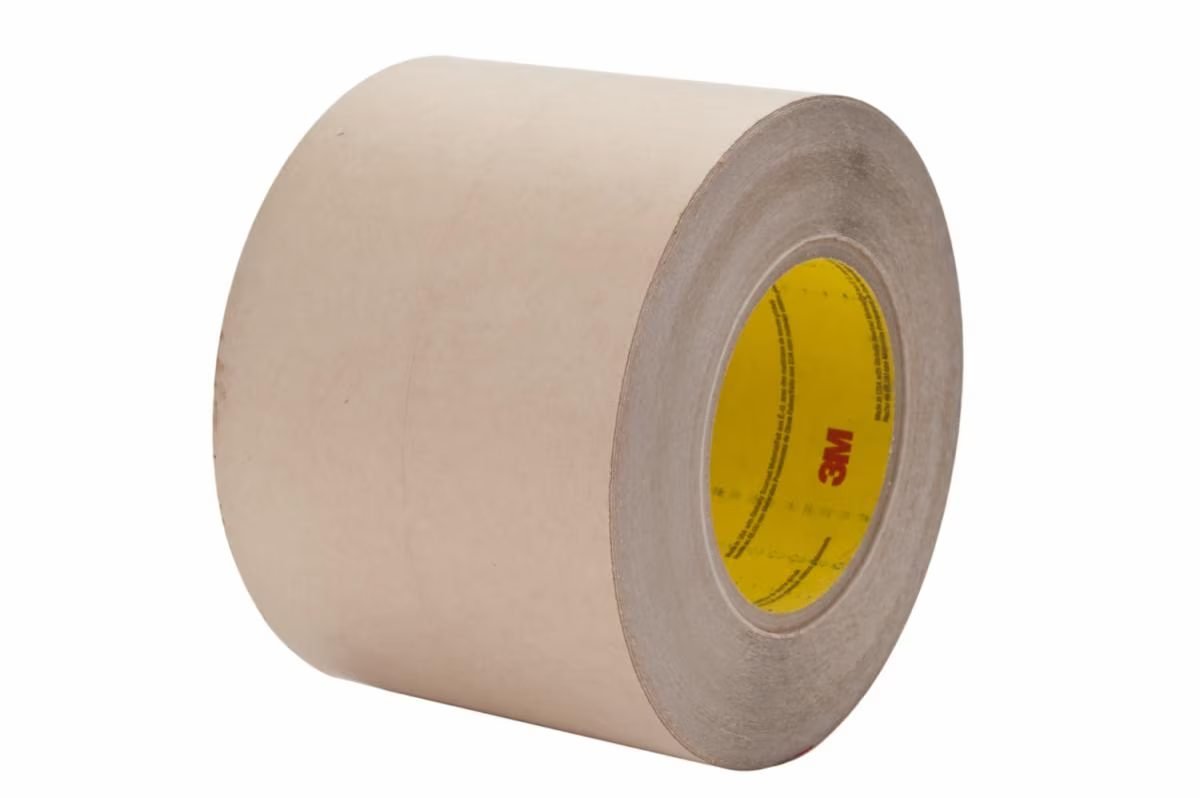

3M™ Sealing Tape 8777
3M™ Sealing Tape 8777 is a self-adhering, waterproof membrane designed for difficult-to-adhere-to surfaces. Its unique acrylic pressure-sensitive adhesive bonds aggressively, adheres to damp surfaces, and maintains adhesion at both low and high application temperatures, providing a unique combination of cold- and hot-temperature adhesion to most substrates, with no melting or staining in summer heat. The proprietary backing seals around hand-driven nails and staples to prevent moisture intrusion. While tough enough to resist punctures and tears, it remains thin and conformable enough to fit conveniently into corners. A split release liner enables fast application with easy, accurate positioning.
Applications include: Sealing joints around sills, jambs, and heads of rectangular windows in wood-frame construction; sealing around other wall interruptions, such as thresholds, dryer vents, and hose bibs; and concealed flashing in vertical walls in frame construction to prevent moisture intrusion and water infiltration.
- High tack, adheres to difficult surfaces
- Adheres to damp surfaces
- No melting or staining in summer heat
- Resists punctures and tears
- Thin and conformable, fits into corners
- Resists UV exposure for up to 12 months
- Compatible with many building sealants
- Split release liner for easy positioning
| Property | Specification |
| Adhesive Material | Acrylic |
| Backing (Carrier) Material | Proprietary film |
| Total Thickness (Imperial) | 9.84 mil |
| Total Thickness (Metric) | 0.25 mm |
| Backing (Carrier) Thickness (Imperial) | 5 mil |
| Backing (Carrier) Thickness (Metric) | 0.23 mm |
| Adhesion to Steel (N/cm) | 6.6 |
| Adhesion to Steel (oz/in) | 60.31 |
| Adhesion Test Method | ASTM D3330 |
| Elongation at Break | >700% |
| Product Color | Tan |
| Certifications | ASTM E331/547 per AAMA 711-07 Annex 1,| ASTM D1970, NFPA 285, LEED-NC 2.2, LEED-CS 2.0, LEED-CI 2.0 |
| Maximum Operating Temperature (Celsius) | 116 °C |
| Maximum Operating Temperature (Fahrenheit) | 241 °F |
| Minimum Operating Temperature (Celsius) | -40 °C |
| Minimum Operating Temperature (Fahrenheit) | -40 °C |
| Adhesive Thickness (mm) | 0.13 |
| Liner | Heavy Paper, Split |
| Standard Roll Length (m) | 23 |
