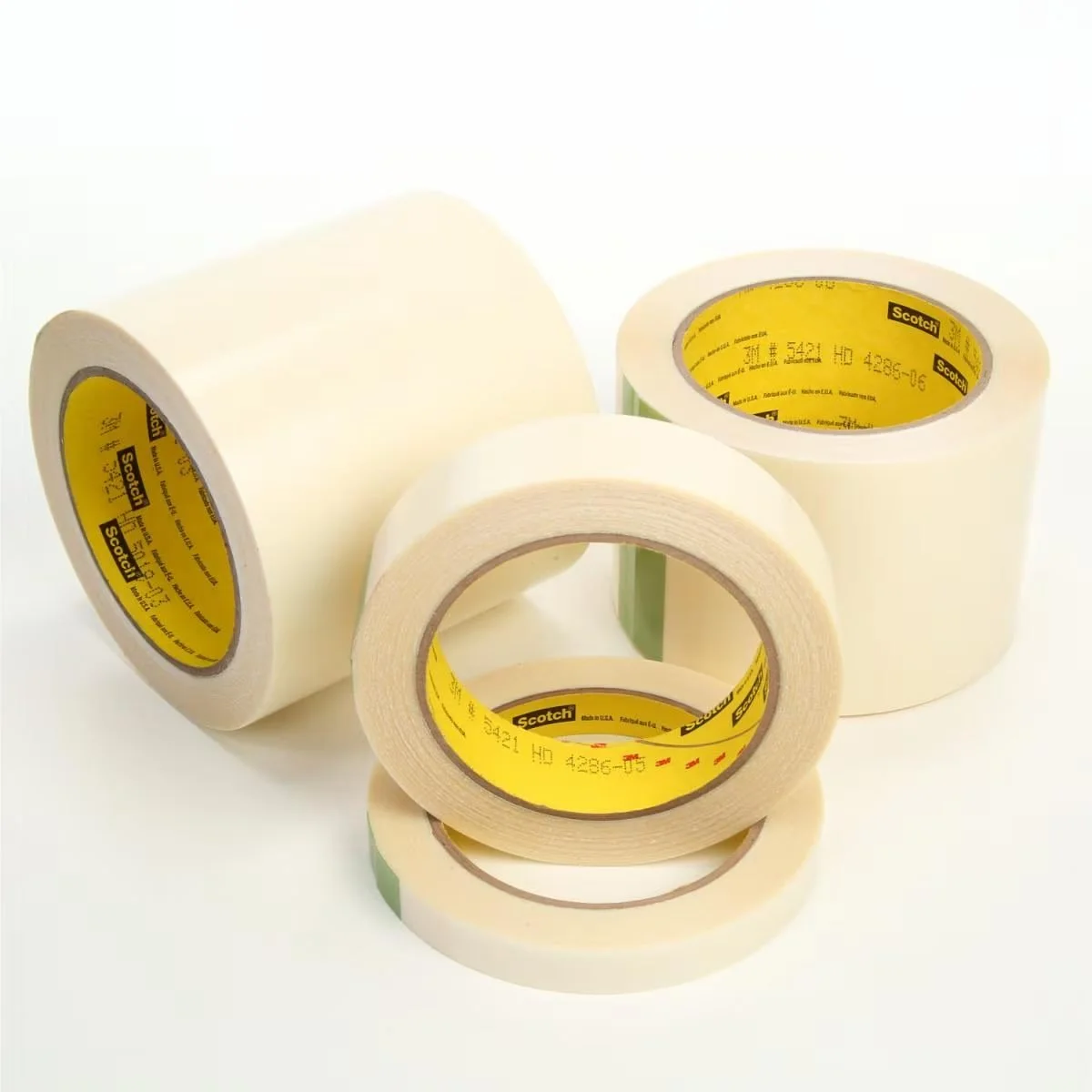

3M™ UHMW Polyethylene Tape 5421
3M™ UHMW Polyethylene Tape 5421 is a thinner version of 5423, coated with a rubber adhesive that bonds on contact. The UHMW-PE backing outlasts PTFE and other materials in sliding applications. In 3M testing, the tape showed no evidence of wear-through after 1,000 Taber Abrasion cycles using a CS-10 wheel and 1,000 g load when applied to an S-37 mounting sheet. This makes it well suited for tough impact-wear and sliding applications where lubrication is not possible because of contamination.
Applications include: Noise reduction between dissimilar parts, lining conveyor flat guide rails, tank and bin liners, discharge chutes, protecting aluminum sheets on stretch-forming presses, spray booth liners, and slick glide surfaces for drawers and cabinets.
- No wear-through after 1000 Taber Abrasion cycles
- Low water vapor transmission rate
- Low coefficient of friction, exceeded only by PTFE
- Liner-backed for easy fabricating and die-cutting
| Property | Specification |
| Adhesive Material | Rubber |
| Backing (Carrier) Material | UHMW-PE film |
| Total Thickness (Metric) | 0.17 mm |
| Backing (Carrier) Thickness (Imperial) | 5.12 mil |
| Backing (Carrier) Thickness (Metric) | 0.13 mm |
| Adhesion to Steel (N/cm) | 3.7 |
| Adhesion to Steel (oz/in) | 33.81 |
| Adhesion Test Method | ASTM D3330 |
| Tensile Strength (N/cm) | 79.6 |
| Tensile Strength (lb/in) | 45.45 |
| Elongation at Break | 440% |
| Product Color | Translucent |
| Maximum Operating Temperature (Celsius) | 107 °C |
| Maximum Operating Temperature (Fahrenheit) | 225 °F |
| Minimum Operating Temperature (Celsius) | -34 °C |
| Minimum Operating Temperature (Fahrenheit) | -29 °C |
| Adhesive Thickness (mm) | 0.0400 |
| Liner | 60# Densified Kraft, Silicone Treated Paper |
| Liner Thickness (mm) | 0 |
| Standard Roll Length (m) | 33 |
