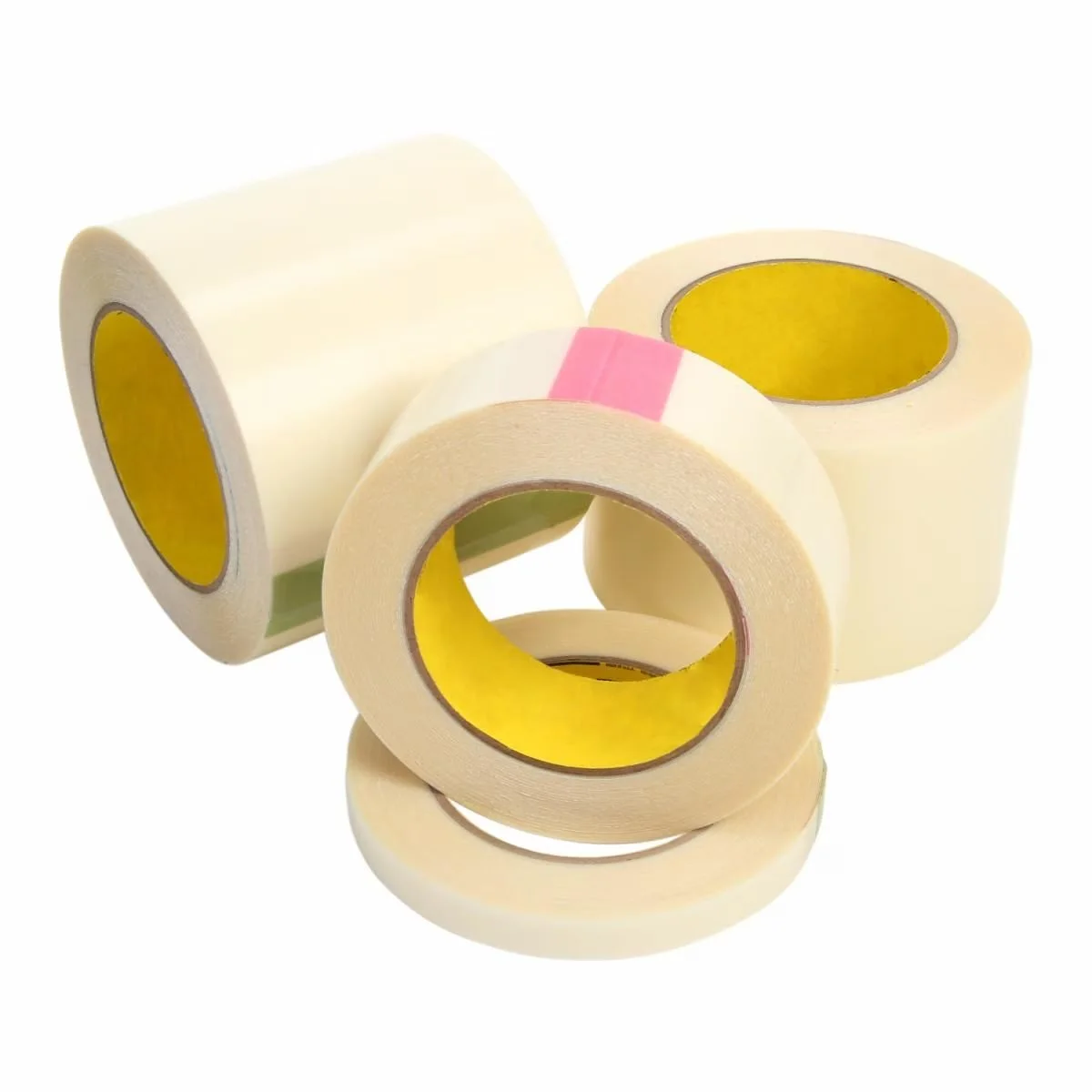

3M™ UHMW Polyethylene Tape 5425
The firm acrylic adhesive on 3M™ UHMW Polyethylene Tape 5425 resists many solvents and oils, providing strong adhesion and chemical resistance in demanding environments. Engineered with a UHMW polyethylene backing, this tape is designed for applications with severe impact or sliding wear where a durable, low-friction surface is required.
Applications include: Abrasion protection for rubber fuel cells and gaskets exposed to numerous corrosive chemicals; spiral-wrapped wire harnesses resistant to hydraulic fluids; dissimilar-metal separation to help prevent wear and chemical corrosion; wear surfaces requiring transparency; and guide rails and chutes requiring a more durable, solvent-resistant sliding surface.
- No evidence of wear-through after 1000 cycles of Taber Abrasion testing
- Low water vapor transmission rate
- Acrylic adhesive bonds best to high surface energy materials
- Outlasts PTFE and other materials in sliding applications
- Low coefficient of friction, exceeded only by PTFE
- Usable where lubrication isn't possible due to contamination
- Provides sound damping through high energy-absorption capacity, which can help reduce noise levels in machinery and equipment
- Liner-backed for fabrication or die-cutting into various lengths and shapes
| Property | Specification |
| Adhesive Material | Acrylic |
| Backing (Carrier) Material | UHMW-PE film |
| Total Thickness (Imperial) | 5.12 mil |
| Total Thickness (Metric) | 0.13 mm |
| Backing (Carrier) Thickness (Imperial) | 3.15 mil |
| Backing (Carrier) Thickness (Metric) | 0.08 mm |
| Adhesion to Steel (N/cm) | 5.3 |
| Adhesion to Steel (oz/in) | 48.43 |
| Adhesion Test Method | ASTM D3330 |
| Tensile Strength (N/cm) | 44.4 |
| Tensile Strength (lb/in) | 25.35 |
| Elongation at Break | 345% |
| Product Color | Translucent |
| Maximum Operating Temperature (Celsius) | 107 °C |
| Maximum Operating Temperature (Fahrenheit) | 225 °F |
| Minimum Operating Temperature (Celsius) | -34 °C |
| Minimum Operating Temperature (Fahrenheit) | -29 °C |
| Adhesive Thickness (mm) | 0.0500 |
| Liner | Yes |
| Liner Thickness (mm) | 0 |
| Standard Roll Length (m) | 33 |
