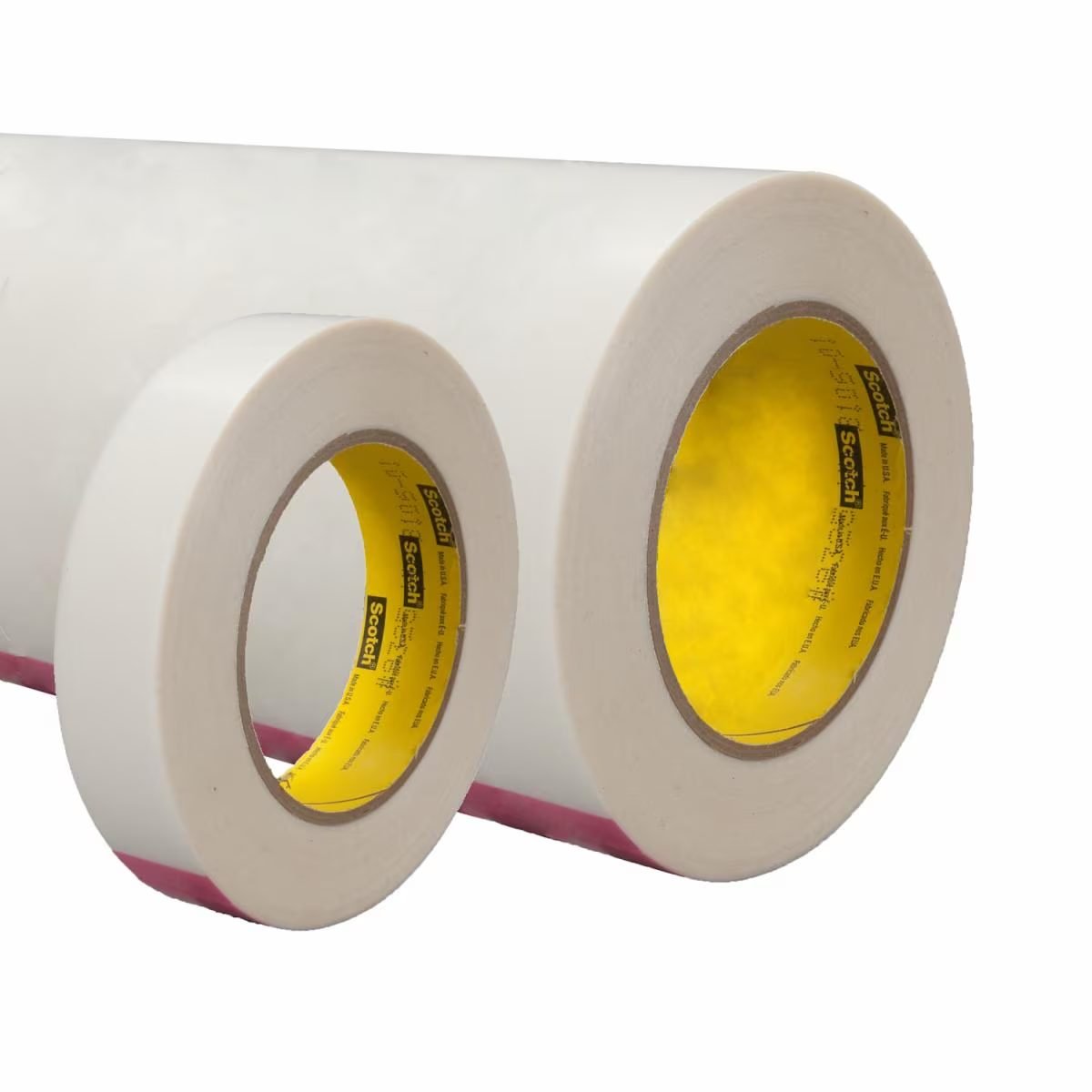

3M™ UHMW Polyethylene Tape 9325
3M™ UHMW Polyethylene Tape 9325 combines a UHMW polyethylene backing with a high-tack acrylic adhesive to control squeaks and rattles caused by vibration or wear in metal and plastic parts. The tape outlasts many PTFE tapes and other materials in sliding applications and withstands up to 1000 cycles of Taber Abrasion testing without wearing through. It can also be used in applications where lubrication isn't an option due to contamination.
Applications include: Automotive instrument panel and interior noise reduction, noise reduction between the rim fascia and painted metal, noise reduction on doors, reducing squeaks and rattles caused by movement, and industrial sliding or wear applications requiring very high adhesion.
- No evidence of wear-through after 1000 cycles of Taber Abrasion testing
- Low water vapor transmission rate
- High-tack acrylic adhesive provides a strong initial bond to painted metal and plastic surfaces
- Outlasts PTFE and other materials in sliding applications
- Low coefficient of friction, exceeded only by PTFE
- Usable where lubrication isn't possible due to contamination
- Liner-backed for fabrication or die-cutting into various lengths and shapes
| Property | Specification |
| Adhesive Material | Acrylic |
| Backing (Carrier) Material | UHMW-PE film |
| Total Thickness (Imperial) | 5.3 mil |
| Total Thickness (Metric) | 0.13 mm |
| Backing (Carrier) Thickness (Imperial) | 3 mil |
| Backing (Carrier) Thickness (Metric) | 0.08 mm |
| Adhesion to Steel (N/cm) | 7.3 |
| Adhesion to Steel (oz/in) | 66.71 |
| Adhesion Test Method | ASTM D3330 |
| Tensile Strength (N/cm) | 47td> |
| Tensile Strength (lb/in) | 26.84 |
| Elongation at Break | 390% |
| Product Color | Translucent |
| Maximum Operating Temperature (Celsius) | 107 °C |
| Maximum Operating Temperature (Fahrenheit) | 225 °F |
| Minimum Operating Temperature (Celsius) | -34 °C |
| Minimum Operating Temperature (Fahrenheit) | -29 °C |
| Adhesive Thickness (mm) | 0.0500 |
| Liner | Yes |
| Liner Thickness (mm) | 0 |
| Standard Roll Length (m) | 33 |
