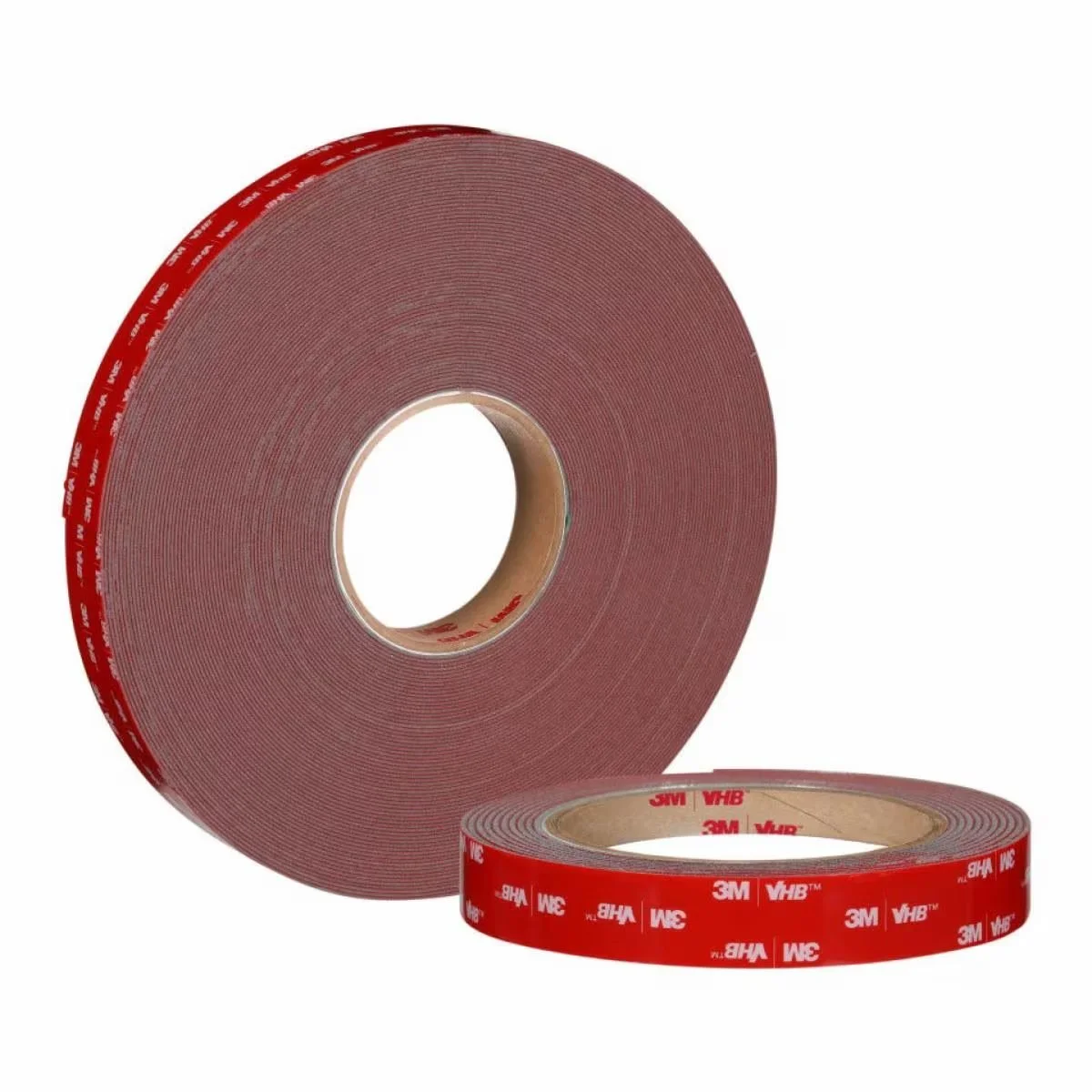

3M™ VHB™ Tape Max-110GF
At 1.1 mm (45 mil), 3M™ VHB™ Tape Max-110GF is engineered for high-strength bonding, with acrylic adhesive on both sides of a firm acrylic foam core, protected by a PE film liner. When used with 3M™ VHB™ Tape Max Promoter, the adhesive forms a contact bond on metals, glass, and many paints and plastics, providing immediate handling strength while keeping fastening virtually invisible.
Applications include: Panel-to-frame bonding, stiffener and bracket attachments, rub rails and trim, dissimilar-material bonding, and general static-load applications, used in OEM equipment, box trucks and dry vans, appliances, building components, buses, specialty vehicles, HVAC equipment, general industrial equipment, and auto displays.
- Replaces rivets, welds, screws, and liquid adhesives
- Immediate handling strength upon contact with Promoter
- Narrower bond lines, less bond area required
- Virtually invisible fastening
- Bonds dissimilar, thinner, lighter materials
- Seals out water, moisture, and dust/debris
- Suited to rigid, normal-flatness substrates
- Maintains viscoelasticity and stress relaxation properties
| Property | Specification |
| Adhesive Material | Acrylic |
| Backing (Carrier) Material | Firm acrylic foam core |
| Total Thickness (Imperial) | 45 mil |
| Total Thickness (Metric) | 1.14 mm |
| Density (Metric) kg/m³ | 850 |
| Density (Imperial) lb/ft³ | 53.064 |
| Adhesion to Steel (N/cm) | 92 |
| Adhesion to Steel (oz/in) | 840.74 |
| Adhesion Test Method | ASTM D3330 |
| Tensile Strength (N/cm) | 482 |
| Tensile Strength (lb/in) | 275.23 |
| Product Color | Gray |
| Maximum Operating Temperature (Celsius) | 121 °C |
| Maximum Operating Temperature (Fahrenheit) | 250 °F |
| Liner | PE Film |
| Liner Thickness (mm) | 0.12 |
| Standard Roll Length (m) | 33 |
