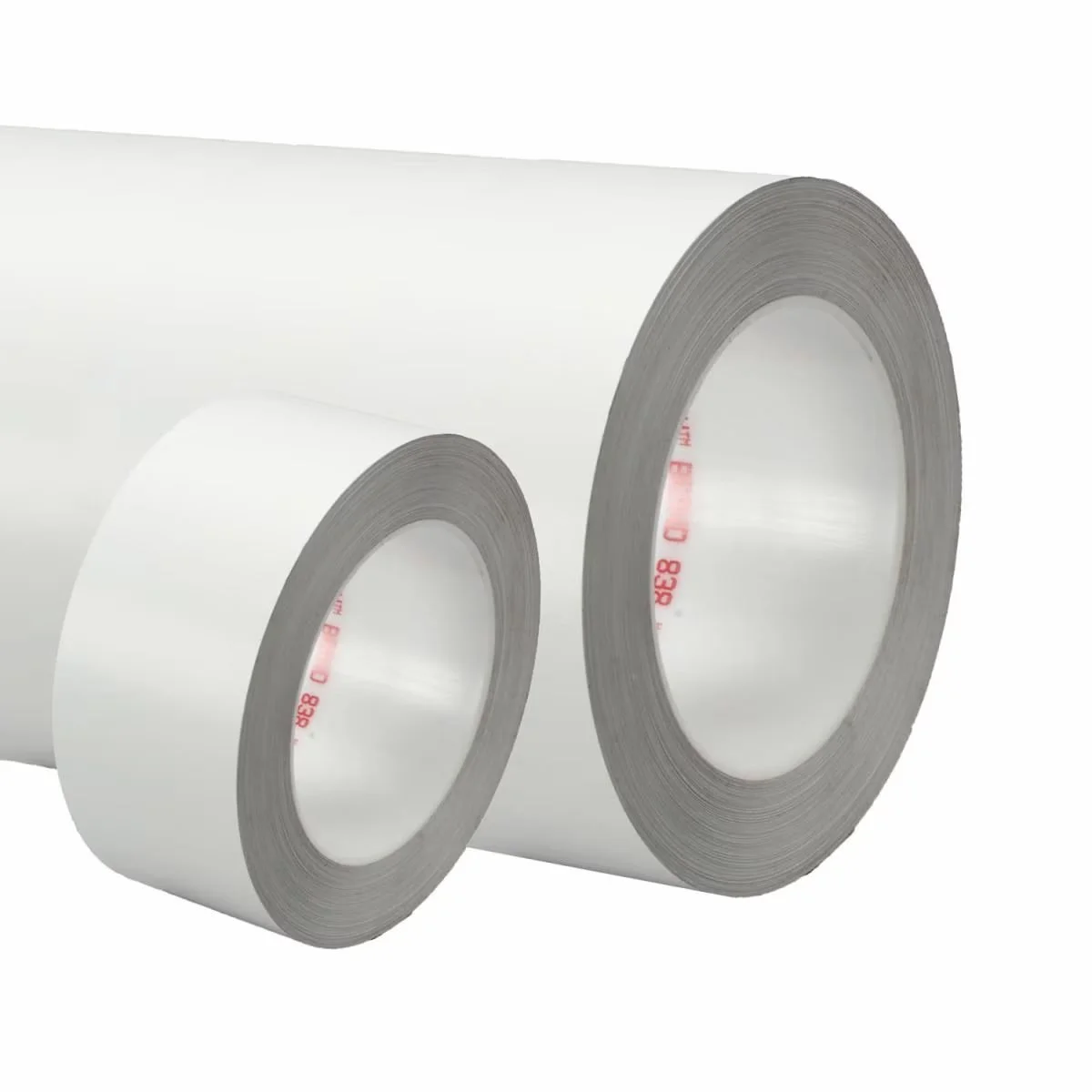

3M™ Weather Resistant Film Tape 838
3M™ Weather Resistant Film Tape 838 features a strong, thin Tedlar® PVF backing and a high-shear, solvent-resistant acrylic adhesive for long-term weather-resistant protection. The Tedlar® backing provides strength without added thickness, and its film properties deliver excellent resistance to weathering, outstanding mechanical properties, and inertness toward a wide variety of chemicals, solvents, and staining agents. Because it contains no plasticizers, the tape ages well, remaining tough and flexible over a broad temperature range.
Applications include: Sealing seams on outdoor building panels, windows, and doors, and similar severe-exposure applications; hinge seal on shower doors; sealing critical areas to prevent moisture intrusion
- Strength without thickness
- Excellent weathering resistance
- Outstanding mechanical properties
- Inert to chemicals, solvents, staining agents
- No plasticizers, good aging properties
- Tough and flexible over a broad temperature range
| Property | Specification |
| Adhesive Material | Acrylic |
| Backing (Carrier) Material | Tedlar® PVF |
| Total Thickness (Imperial) | 3.4 mil |
| Total Thickness (Metric) | 0.09 mm |
| Backing (Carrier) Thickness (Imperial) | 2.10 mil |
| Backing (Carrier) Thickness (Metric) | 0.05 mm |
| Adhesion to Steel (N/cm) | 5.10 |
| Adhesion to Steel (oz/in) | 46.61 |
| Adhesion Test Method | ASTM D3330 |
| Tensile Strength (N/cm) | 42 |
| Tensile Strength (lb/in) | 24 |
| Elongation at Break | 170% |
| Product Color | White |
| Maximum Operating Temperature (Celsius) | 107 °C |
| Maximum Operating Temperature (Fahrenheit) | 225 °F |
| Minimum Operating Temperature (Celsius) | -34 °C |
| Minimum Operating Temperature (Fahrenheit) | -30 °C |
| Adhesive Thickness (mm) | 0.0400 |
| Standard Roll Length (m) | 33 |
