Mechanical Stability in Soft Interface Materials: Creep, Shear Drift, and Long-Term Compression Set Understanding for Foam Die-Cut Gasket Selection
Appliance, HVAC, and Industrial Sealing and Cushioning Applications
Seals and cushioning pads that pass qualification testing can still fail in the field. Compression set, creep, and shear drift each degrade long-term sealing and cushioning performance through different mechanisms, and none of them appear in standard short-term qualification testing. A material that holds its geometry and load under a 24-hour bench test may lose significant thickness, migrate laterally, or take a permanent set over months of sustained compression at operating temperature.
Material class determines which of those mechanisms dominates. The failure mode that governs a door gasket operating at 180°F is not the same one that governs a vibration isolation pad under cyclic dynamic loading, and the material selection decision follows from that distinction. Specifying short-term test data without accounting for the dominant long-term mechanism is the most common source of premature seal degradation and field failures in appliance, HVAC, and industrial sealing applications.
Failure in field conditions typically appears as loss of sealing force, moisture ingress, increased noise and vibration, panel rattle, air leakage, or reduced thermal efficiency. In appliance and HVAC systems, even small reductions in gasket compression force can create measurable decreases in system efficiency and increase warranty risk.
Why Short-Term Compression Set Testing Does Not Predict Long-Term Seal Performance
Standard compression set testing provides a useful baseline but does not predict long-term seal performance under real operating conditions. Compression set is measured at defined laboratory conditions that do not reflect the elevated temperatures or application-specific deflection levels present in most appliances, HVAC, and industrial assemblies. A material that measures acceptable compression set at standard test conditions may perform very differently when held at operating temperature under the actual load the assembly applies. Compression set above 25% is generally considered the threshold for long-term seal failure risk in gasketed assemblies, and materials that approach or exceed that value under operating conditions warrant closer evaluation before specification.
Creep and stress relaxation continue after initial deflection, gradually reducing gasket contact force over months or years without any visible change to the assembly. Shear drift under vibration or thermal cycling introduces a separate mechanism that compression set testing does not capture at all, and it requires application-specific evaluation to assess.
ASTM D1056 commonly defines physical requirements for elastomeric cellular materials while ASTM D3574 establishes methods for flexible cellular urethane materials. Stress relaxation testing and compression force deflection measurements are frequently added because compression set alone does not quantify sealing force retention. Materials showing equivalent compression set values can retain substantially different sealing loads over time.
For most closed-cell gasket designs, recommended compression ranges typically fall between 20% and 50% of free thickness. Compression below this range may produce inadequate sealing force while excessive compression accelerates stress relaxation and permanent deformation.
PORON Microcellular Urethane
PORON microcellular urethane is the standard specification for indoor enclosure gaskets, dust seals, cushioning pads, and vibration isolation applications. Its low compression set and consistent recovery under cyclic loading make it well suited for applications where the gasket is compressed and released repeatedly over the service life of the product. Service temperature is rated to 194°F (90°C) for continuous use, and the material carries UL 50 and UL 508 listings for gasketing and sealing applications in electrical enclosures.
PORON is not recommended for outdoor or UV-exposed applications and is not designed for liquid sealing. For applications requiring a liquid seal, PORON Aquapro should be specified in place of standard grades.
Available brands in this material class include PORON from Rogers Corporation, Griswold, and 3M Isoloss.
Typical compression force-deflection values vary significantly by grade and density. Higher density grades improve dimensional stability but increase assembly insertion force and reduce compliance across uneven mating surfaces.
Neoprene and Blended Neoprene (EPDM, CR, SBR) Foam
Neoprene and blended neoprene foam is the standard specification for outdoor sealing, HVAC panel interfaces, weatherproofing, and general-purpose gasketing where a balance of environmental and chemical resistance is required. The material provides good resistance to oils, water, chemicals, and ozone, with a service temperature to 200°F (93°C).
Long-term thermal aging should also be considered because elevated temperature exposure accelerates elastomer hardening and increases compression set. Heat-aging evaluations frequently use ASTM D573 to quantify changes in tensile properties and elongation after exposure.
Blended formulations combining EPDM, CR, and SBR allow the resistance profile to be adjusted by ratio: higher EPDM content improves weathering and UV resistance; higher neoprene content improves oil and chemical resistance.
The material carries a UL 94 HF-1 flame rating and is listed for UL 48, UL 50E, and UL 508 applications. Available brands include Armacell, Ensolite, Monarch, Rubatex, Monmouth, and American National Rubber.
EPDM Closed-Cell Foam
EPDM closed-cell foam is specified when aging, weather, and ozone resistance requirements exceed what blended neoprene grades provide. Service temperature reaches 220°F (104°C), and the closed-cell structure provides an excellent moisture seal, making it a common choice for HVAC enclosure seals, rooftop equipment gaskets, and outdoor panel interfaces.
EPDM is not suitable for applications involving petroleum-based media. Where oil or fuel resistance is required alongside weathering resistance, a blended neoprene formulation is the appropriate alternative. Available brands include Armacell, Ensolite, Fostek, and Monarch.
Vinyl Nitrile (PVC/NBR) Closed-Cell Foam
Vinyl nitrile foam is a closed-cell blend of PVC and nitrile rubber (NBR) that combines flame retardance, oil resistance, and sound deadening in a single material. PVC contributes flame resistance and weather resistance; the nitrile component provides oil and fuel resistance. It is listed for UL 50E gasketing and sealing and carries a UL 94 HF-1 flame rating across the grade range.
Primary applications include gasketing, sealing, sound dampening, and protective padding. The closed-cell structure provides an excellent seal against moisture and gas, and the material's impact resistance and vibration damping properties make it well suited for assemblies where both sealing and noise reduction are required.
Service temperature ranges from –40°F to 200°F depending on grade, with compression set at or below 25% across the lineup. FMVSS 302 combustion requirements are met across the full grade range. Available brands include Armacell, Ensolite, Monarch, Armaflex, American National Rubber, Kflex, and Aerocell.
PVC Closed-Cell Foam
PVC closed-cell foam is specified for applications requiring a dimensionally stable, moisture-resistant foam with good chemical resistance at moderate service temperatures. The closed-cell structure provides a reliable barrier against moisture and gas, and the material is commonly used in HVAC, industrial sealing, and gasket applications where flame retardance and weather resistance are required at a cost-effective price point.
Available brands in this material class include Gaska, Novagard and Crown.
Silicone Foam (BISCO HT Series)
Silicone foam is specified when operating temperature, flame rating requirements, or service life expectations exceed what urethane or elastomeric closed-cell foams can reliably deliver. Continuous service temperature reaches 392°F (200°C), and the material maintains extremely low compression set at that temperature range. Where a urethane or elastomeric foam may take permanent set over time at elevated temperature, silicone foam recovers reliably across thermal cycles throughout the service life of the assembly.
The material carries UL 94 V-0 and HF-1 flame ratings and meets MIL-R-6310 Type II. Available brands include the Rogers Corporation BISCO HT series, Saint-Gobain Norseal, and National Silicone.
Silicone Sponge
Silicone sponge is specified when both extreme temperature resistance and high mechanical durability are required from a single gasket material. It is denser and mechanically stronger than silicone foam, with higher tear resistance and better performance under repeated compression cycles. Continuous service temperature reaches 450°F (232°C), with some grades rated for intermittent exposure to 500°F (260°C).
The combination of mechanical durability and temperature resistance makes silicone sponge the appropriate specification for outdoor access panels, commercial lighting gaskets, electronics cushioning pads, and pharmaceutical and food handling applications. FDA-compliant grades meeting 21 CFR 177.2600 are available for food contact and pharmaceutical applications; not all standard industrial grades carry this certification, and it should be confirmed at the time of specification.
Available brands include Saint-Gobain Norseal, Arlon, and Silicone Engineering.
EVA/XLPE Closed-Cell Blends
EVA/XLPE closed-cell blended foam is specified for tape substrates, moisture-resistant cushioning, and controlled-compliance gasketing where dimensional stability and consistent compression behavior are the primary requirements. The cross-linked polyethylene component provides structural integrity and reduced compression set relative to standard polyethylene foam, while the EVA component contributes to flexibility and stress-crack resistance.
Good dimensional stability and low water absorption make this material well suited for applications where moisture exposure is a concern. Service temperature reaches 175°F (79°C). Flame-retardant grades are available with a UL 94 HF-1 rating. Available brands include Volara, Fusion, Vizion, and Qycell.
Material Selection Guide
| Aplication | Recommended Material |
|---|---|
| Indoor enclosure sealing, to 194°F (90°C) | PORON microcellular urethane |
| Outdoor sealing, oil resistance, to 200°F (93°C) | Neoprene and blended EPDM/CR/SBR foam |
| Superior aging and ozone resistance, to 220°F (104°C) | EPDM closed-cell foam |
| Flame-rated, long service life, to 392°F (200°C) | Silicone foam |
| Extreme temperature and mechanical durability, to 450°F (232°C) | Silicone sponge |
| Tape substrate, moisture-resistant cushioning, to 175°F (79°C) | EVA/XLPE blend |
Converting and Formats for Die-Cut Gaskets and Laminated Assemblies

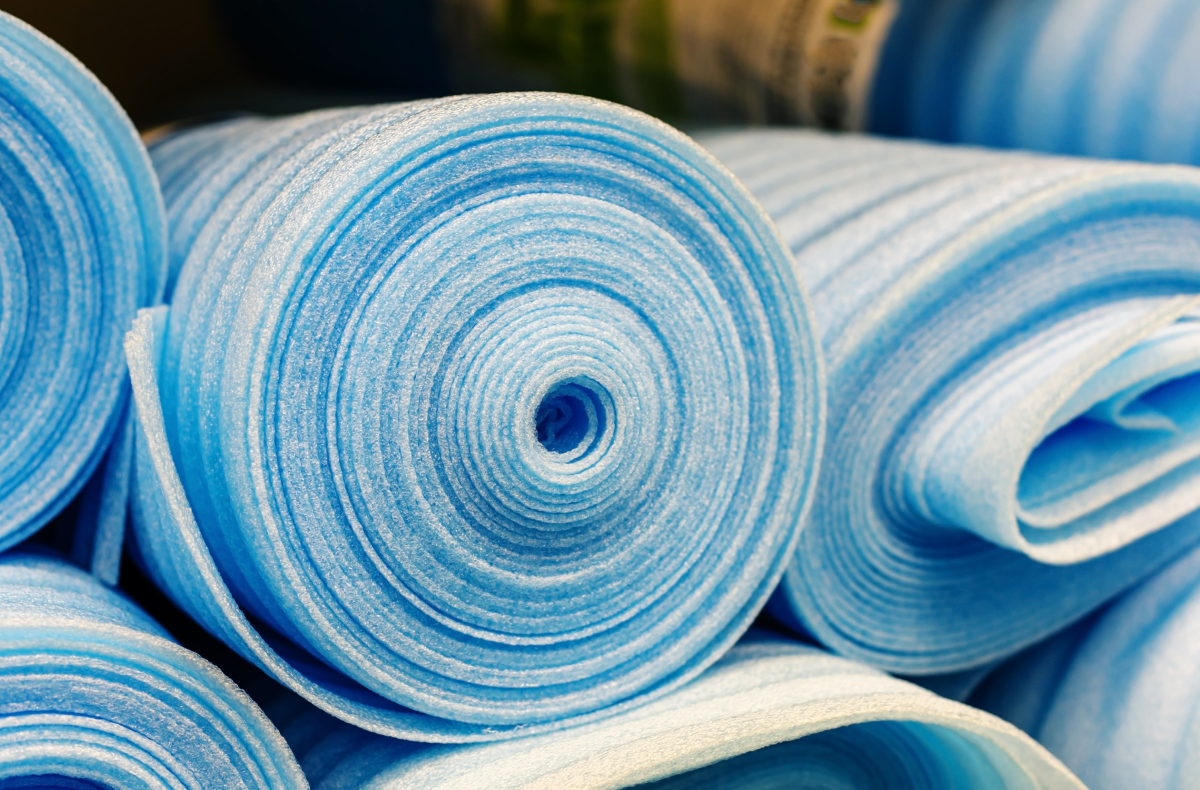

All materials are available as die-cut parts, slit rolls, and sheet stock. Kiss-cut liner format supports peel-and-apply installation on assembly lines, eliminating handling steps and reducing misalignment risk at the bonding interface.
PSA lamination is available with acrylic or silicone adhesive depending on substrate, temperature range, and bond permanence. Multi-layer lamination combines foam, adhesive, and film layers into a single converted component with web widths up to 60 inches.
Cutting methods include waterjet for thick or dense materials, laser for precision profiles and prototype quantities, rotary die for high-volume production, and flatbed die for complex geometries. Level-wound rolls are available for automated dispensing equipment.
Converting process selection can materially influence performance. Laser cutting may create localized thermal effects in certain polymeric foams, while waterjet processing eliminates heat effects but may reduce throughput for production quantities. Rotary die-cutting generally becomes the preferred process for high-volume manufacturing because of repeatability and lower per-part cost.
Application Checklist for Foam Gasket Material Selection
Before specifying a foam material for a sealing or cushioning application, confirm the following:
Which failure mechanism governs: compression set, creep, or shear drift?
Operating temperature range, including peak temperatures and thermal cycling
Indoor or outdoor installation; UV, ozone, moisture, or oil exposure present?
Flame or smoke toxicity rating required?
Required service life and whether short-term qualification test data is sufficient
Roll stock, sheet, or die-cut parts required?
What type of validation testing is required: including ASTM D1056, ASTM D3574, ASTM D573 heat aging, thermal cycling, and vibration exposure requirements
FAQs
How does operating temperature affect compression set in elastomeric foam gaskets?
Compression set increases with temperature. A material with acceptable compression set at ambient may exceed the 25% failure threshold at operating temperature, reducing contact force and compromising the seal over time.
When should silicone foam be specified over EPDM for sealing applications?
Specify silicone foam when operating temperature exceeds 220°F (104°C), when a UL 94 V-0 flame rating is required, or when long-term compression set resistance at elevated temperature is the governing requirement. EPDM is the appropriate choice for outdoor weathering applications within its temperature range where those requirements are not present.
What is the difference between EPDM foam and blended neoprene/EPDM/CR/SBR foam?
Pure EPDM foam provides superior UV, ozone, and weathering resistance but has poor oil and fuel resistance. Blended neoprene formulations add oil and chemical resistance by incorporating CR and NBR components, at some reduction in weathering performance. The blend ratio can be adjusted depending on the application's primary exposure conditions.
What ASTM standard tests compression set in urethane foam vs. rubber sponge?
Compression set in flexible urethane foam is tested per ASTM D3574. Compression set in rubber sponge and elastomeric closed-cell foam is tested per ASTM D1056.
Specifying Soft Interface Materials for Long-Term Sealing and Cushioning
The right material in the right format, converted as a precision die-cut or PSA-laminated part, reduces assembly time and eliminates the field failures that follow from specifying to short-term test data alone.
