3M™ VHB™ Tape Max Series: The Next Level in High-Strength Bonding
As pressure sensitive adhesive (PSA) tapes technology continues to advance and more versatile, traditional fastening methods like screws, rivets, and welds often struggle to keep up in terms of performance. From increased assembly costs to design limitations and long-term reliability concerns, today’s bonding challenges demand better solutions Among these solutions are VHB acrylic foam tapes, which offer unique combination of strength, flexibility, and ease of application. With the introduction of the 3M™ VHB™ Tape Max Series, engineers and designers now have a new series of high-performance, double-sided acrylic foam tapes that take peel and stick bonding to the next level.
The Evolution of Acrylic Foam Tapes
With their ability to conform to irregular surfaces, resist temperature extremes, and absorb shock and vibration, acrylic foam tapes have replaced traditional mechanical fasteners in everything from electronics to vehicles and many other industrial applications. However, as manufacturing demands have evolved, even standard acrylic foam tapes sometimes fall short. Applications involving extreme loads, dissimilar materials, or smaller bonding areas need something stronger, faster, and more flexible.
While conventional VHB and other acrylic foam tapes offer excellent performance replacing mechanical fasteners, welds, and adhesives in a variety of applications, they have their limitations:
Bond strength can sometimes fall short in high-load structural applications.
Cure time or handling time may delay production.
Small surface area bonding applications limit their use.
Thickness requirements can limit use in compact assemblies.

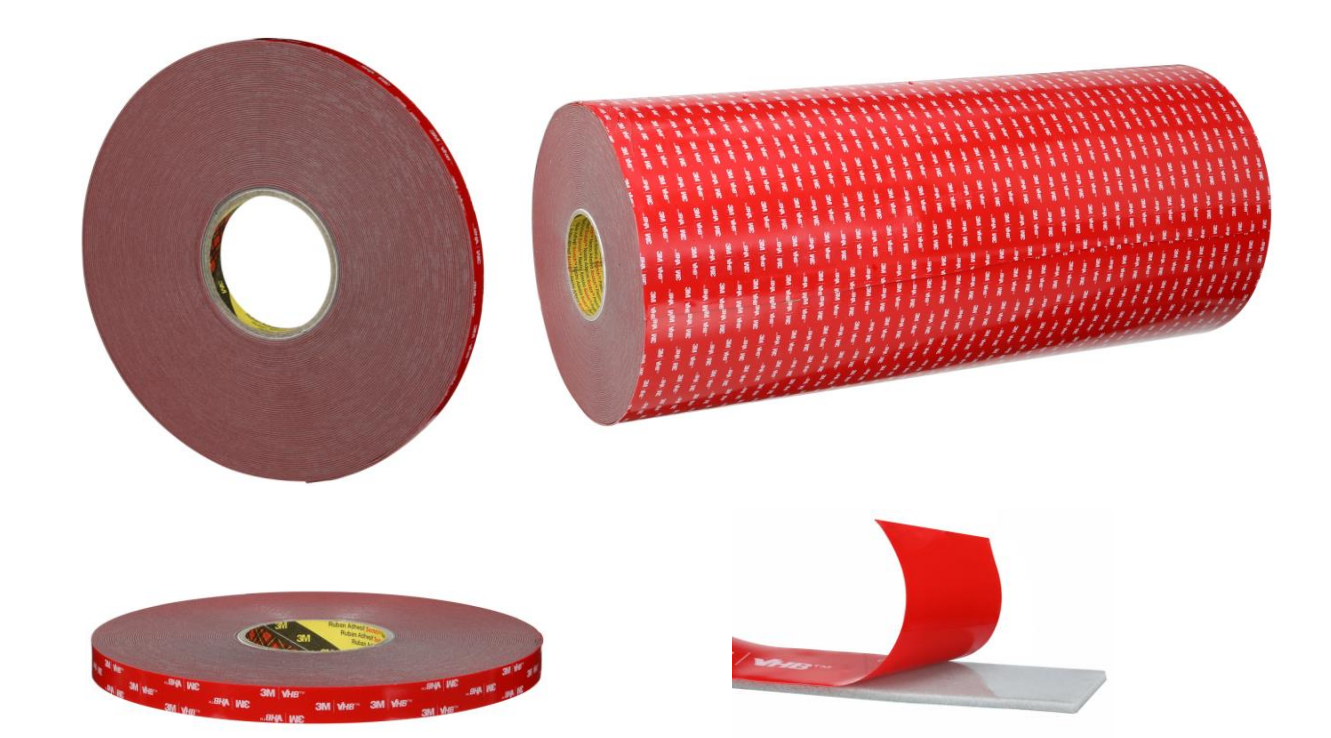

Introducing the 3M™ VHB™ Tape Max Series
The 3M VHB Tape Max Series is an entirely new generation of high-performance acrylic foam tapes designed to deliver next-level strength and performance in the most demanding bonding applications. It’s engineered to overcome these limitations while preserving all the benefits of acrylic foam tape technology.
The 3M VHB Tape Max Series provides double the strength of standard VHB tapes while maintaining the flexibility, workability, and stress-dispersing properties that have made VHB a trusted adhesive solution.
Designed for Permanent Bonding
The VHB Max Series is made to replace traditional mechanical fasteners, rivets, and liquid adhesives. It creates high-strength bonds to a range of substrates, making it ideal for assemblies that require long-term durability and immediate handling strength.
The tape is optimized for bonding to:
High surface energy substrates, such as stainless steel and aluminum
Medium surface energy plastics, including ABS and polycarbonate
Its acrylic foam core provides viscoelastic properties, meaning it can absorb dynamic loads and maintain performance under thermal expansion, contraction, and vibration.
Acrylic Foam Backing
The foam core of the VHB Max Series is made of durable, energy-dissipating acrylic foam. This closed-cell structure offers several key benefits:
Conformability to irregular or textured surfaces for uniform bonding
Shock absorption for dynamic or vibration-prone environments
Thermal expansion compliance to maintain bond strength even under fluctuating temperatures
Gap-filling ability, handling voids up to 2.3 mm with ease
Viscoelastic behavior that spreads stress across the bonded area, reducing fatigue over time
Acrylic Adhesive
The high-performance acrylic adhesive used in the VHB Max Series is designed to create a strong and permanent bond. Key characteristics include:
Excellent adhesion to high and medium surface energy substrates
Resistance to UV, moisture, solvents, and temperature extremes
Durable performance in both indoor and outdoor environments
Clean application with consistent bond lines, reducing the risk of mess or rework
Together, the foam and adhesive form a tape that not only bonds materials but enhances the overall strength and longevity of the assembly.
The Performance Advantages of the 3M™ VHB™ Tape Max Series
High bond strength: with an overlap shear strength of up to 470 psi, this tape supports semi-structural applications that would traditionally require mechanical fasteners or welds. This strength allows engineers to reduce the use of hardware, simplify assembly, and still meet demanding load-bearing requirements.
Immediate handling strength: unlike liquid adhesives that require curing time, VHB Max provides an instant bond upon application. This leads to faster assembly workflows, immediate part movement, and reduced labor time on production lines.
Enhanced viscoelasticity: the tape’s foam core is engineered to maintain elasticity under load and relax internal stresses over time. This prevents fatigue-related bond failure and helps accommodate thermal expansion and contraction, ensuring long-term bond integrity in dynamic environments.
Superior strength compared to standard VHB: the Max Series is up to 2x stronger than traditional VHB tapes. This expanded performance window opens the door to applications previously thought to be out of reach for pressure-sensitive adhesives.
Excellent gap-filling ability: the tape can fill gaps up to 2.3 mm—an advantage when bonding irregular or mismatched surfaces. It also helps eliminate the need for surface flattening or shimming, saving time and cost during part preparation.
Dissimilar material bonding: one of the major benefits of the VHB Max Series is its ability to join different substrates, such as metal to plastic or composite to metal. Its conformability and stress distribution properties reduce the risk of bond failure due to differential expansion or material mismatch.
Thermal and environmental stability: built to perform in a wide range of temperatures and environments, VHB Max maintains its performance even in harsh outdoor or fluctuating conditions. It resists UV exposure, moisture, solvents, and weathering.
Consistent thickness and clean look: the tape creates clean, uniform bond lines with no oozing or overrun, helping manufacturers maintain both performance and visual quality—especially important in appliance and consumer-facing applications.
Reduced part weight and material thickness: by eliminating the need for rivets, screws, and welds, engineers can use thinner, lighter materials without compromising structural integrity. This makes the Max Series a valuable option for weight-sensitive applications like transportation and HVAC units.
Design flexibility: with superior strength and smaller required bond areas, VHB Max enables more compact component layouts, narrow bond lines, and advanced geometric designs. This gives designers greater creative freedom without compromising strength or durability.
Are VHB Tapes Right for My Application?
Thanks to its superior performance, the 3M VHB Tape Max Series is suitable for a wide range of structural and semi-structural bonding applications across multiple industries. Some common applications include:
Latches, handles, and hinges
Bracket and rub rail bonding
Panel-to-frame assemblies
Stiffener attachments
Trim and decorative elements
Dissimilar material bonding (e.g., metal to plastic)
Typical industries and products:
OEM manufacturing
Electronics
Medical diagnostic devices
Box trucks and dry vans
Appliances
Building components (like window and door manufacturers)
HVAC systems
Bus and specialty vehicle assembly
General industrial applications
The Advantages Over Traditional Bonding Methods
When compared to traditional bonding methods, the 3M VHB Tape Max Series offers numerous advantages that contribute to cleaner design, improved performance, and streamlined manufacturing. Unlike mechanical fasteners such as screws, rivets, or welds, this tape requires no drilling, screwing, or welding, which helps eliminate material deformation and reduces the risk of corrosion. It also enables the use of lighter and thinner materials, allowing for weight savings and material cost reductions across various applications.
In comparison to liquid adhesives, VHB Max offers a much cleaner and more efficient alternative. There is no need for mixing, curing, or special applicators, which eliminates mess and simplifies the bonding process. The tape also produces consistent bond lines, improving both aesthetic and structural quality, while reducing waste and speeding up production setup.
Compared to standard acrylic foam tapes, the VHB Max Series provides higher bond strength (up to twice as strong), allowing engineers to use less material while still achieving superior performance. This strength opens up new application possibilities and allows for greater design flexibility, particularly in assemblies with narrow bond lines or space-constrained bonding areas.
Less total tape needed due to increased performance
Design flexibility with narrow bond lines and smaller bonding areas
Custom VHB Tape Conversion
At Engineered Materials, we convert 3M VHB Max Series tapes into custom parts that can be seamlessly implemented into your manufacturing process. With our converting expertise and application knowledge, we help you maximize tape performance, reduce assembly time, and streamline production.
