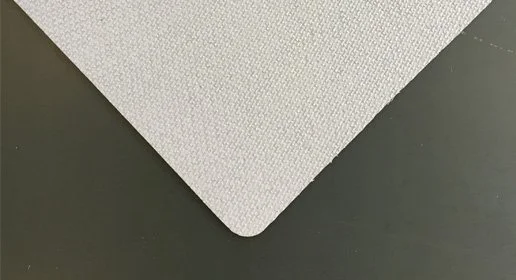

BISCO® 7130 Silicone Sponge
Rogers BISCO® 7130 Silicone Sponge is a soft-grade, closed-cell silicone material engineered for flame-resistant gasketing, sealing, and environmental protection in high-performance applications. Designed to meet the stringent BMS 1-60 Type 1, Grade A specification, BISCO 7130 provides outstanding flame resistance, low compression set, and consistent sealing under long-term compression. It is ideal for use in aerospace, transportation, electronics, and other environments where flame retardancy, durability, and thermal stability are critical. It is a drop-in replacement for the Bisco 7129 Series
Applications include: Gap filling, gasketing and sealing, HEV enclosures, LCDs, shock absorbers, sound blocking, spacers and bin liners, and thermal solutions.
- Available in sheet format (3.18 mm to 25.4 mm / 0.125" to 1")
| Property | Specification |
| Backing (Carrier) Material | Soft closed-cell silicone sponge (soft density) |
| Adhesive Material | Optional Silicone or Acrylic PSA |
| Density (Metric) | 496 kg/m³ |
| Density (Imperial) | 31 lb/ft³ |
| Compression Force Deflection (kPa) | 35 kPa |
| Compression Force Deflection (PSI) | 5 psi |
| Compression Set (22 hrs. at 100°C/50%) | <5% |
| Water Absorption | <5% |
| Thermal Conductivity (K Value) | |
| Tensile Strength (kPa) | 520 kPa |
| Tensile Strength (PSI) | 75 psi |
| Elongation at Break | 250% |
| Shielding Effectiveness (Average 300kHz - 2.5GHz) | |
| Product Color | Gray |
| Dielectric Strength | |
| Volume Resistivity | |
| Insulation Resistance | |
| Certifications | FMVSS 302 and UL 94 HBF, BMS 1-60 Type 1, Grade A |
| Thickness (Imperial) | 0.125-1" |
| Thickness (Metric) | 3.18-25.4 mm |
| Maximum Operating Temperature (Celsius) | 204°C |
| Maximum Operating Temperature (Fahrenheit) | 400°F |
| Minimum Operating Temperature (Celsius) | -55°C |
| Minimum Operating Temperature (Fahrenheit) | -67°F |
