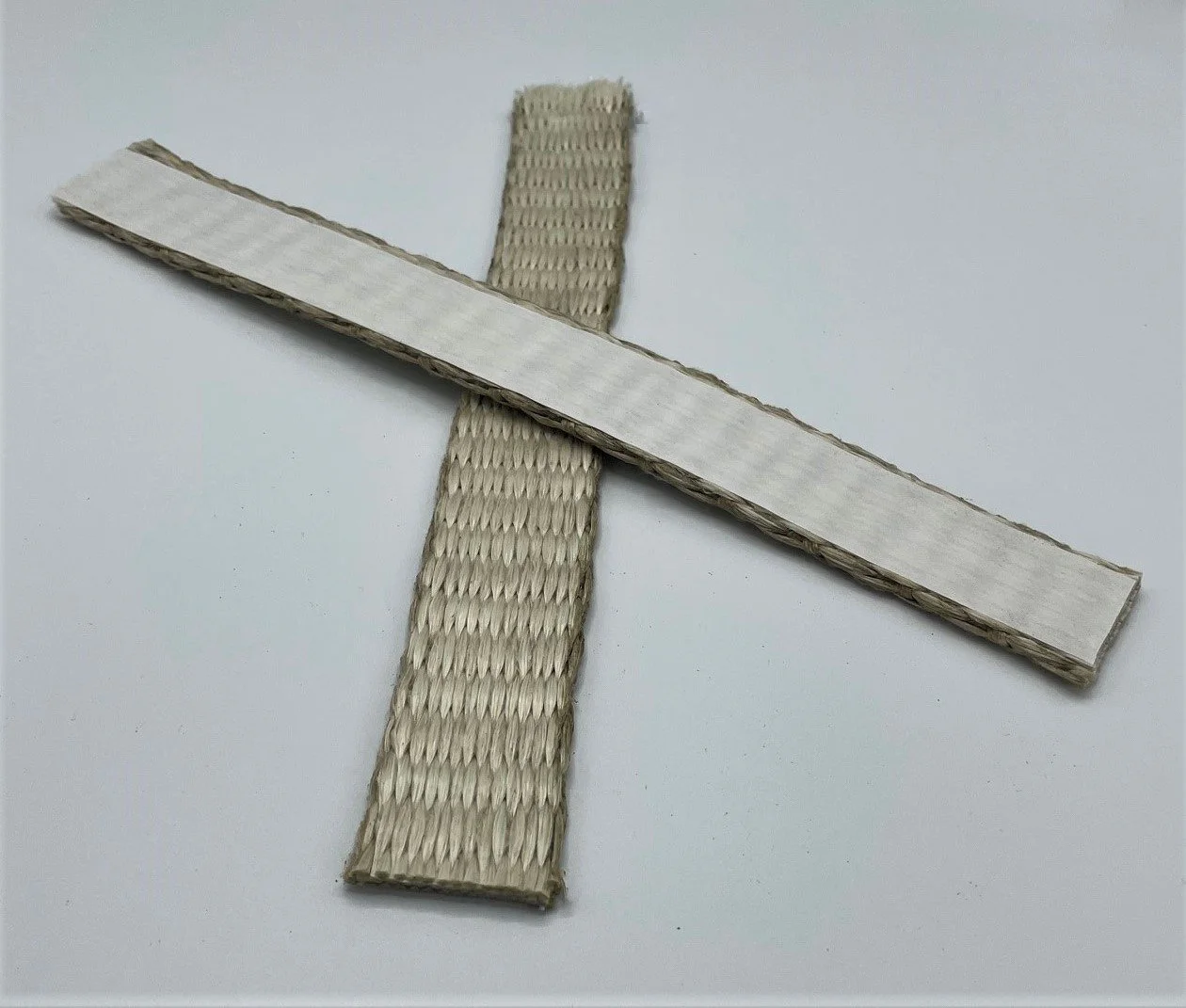

EMI.FG Woven Fiberglass Tape
EMI.FG Tape is a woven fiberglass tape made from 100% texturized E-glass fibers. It offers outstanding temperature resistance, high tensile strength, low thermal conductivity, and excellent chemical resistance. The tape is durable and mildew-resistant. The fabric is rated for continuous use at 1000°F and remains stable up to 1500°F with a Vermiculite coating.
Applications include: Various industrial insulation applications, a good substitute for asbestos in 1000°F-level applications
- 100% texturized E glass fibers
- Outstanding temperature resistance
- High tensile strength
- Low thermal conductivity
- Excellent chemical resistance
- Durable
- Resistant to mildew
| Property | Specification |
| Adhesive Material | |
| Backing (Carrier) Material | Texturized E Glass Fibers |
| Total Thickness (Imperial) | 225 mil |
| Total Thickness (Metric) | 5.715 mm |
| Product Color | Natural |
| Maximum Operating Temperature (Fahrenheit) | 1000 °F |
| Maximum Operating Temperature (Celsius) | -538 °C |
| Standard Roll Length (m) | 30 |
