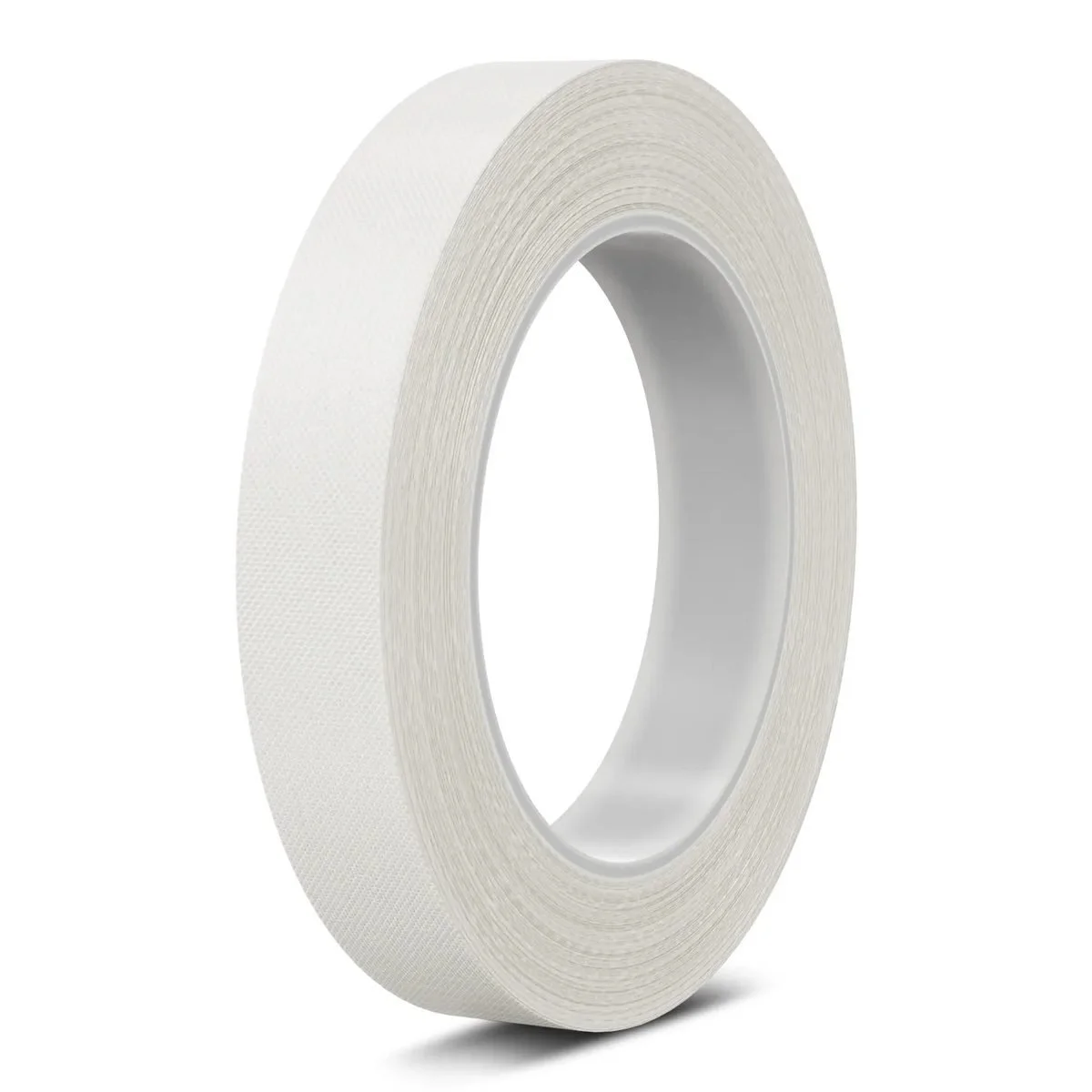

Intertape 4618 Glass Cloth Tape
Intertape 4618 is a glass cloth-backed tape with heat-resistant silicone adhesive for high-temperature applications. This tape resists edge fraying and rotting and is flexible and varnish-absorbent. It's used in applications requiring solvent, flame, and abrasion resistance, including high-temperature coil insulation wrap, harness wrapping, and splicing. It's ideal for motor repair shops for bundling and banding heavy-gauge magnet wire and for slot cell edge taping. 4618 meets MIL-I-19166C government compliance.
Applications include: High temperature coil insulation wrap, harness wrapping, splicing, motor repair shops bundling and banding heavy gauge magnet wire, slot cell edge taping, dry-type and oil-filled transformers, electrical/electronic, EV battery, generators, harness cable assembly, military/government certified, motors, MRO, power supplies and instrumentation, relays, solenoids and magnetic coils, solar and alternative power, UL-approved 200°C
- Thermosetting silicone adhesive
- Inert, high-strength backing
- Resists edge fraying and rotting
- Flexible and varnish absorbent
- Excellent solvent resistance
- Excellent storage stability
- Passed UL510 flammability testing
- Meets MIL-I-19166C government compliance requirements
- UL File #E20780, CSA File #LR94980
| Property | Specification |
| Adhesive Material | Thermosetting silicone |
| Backing (Carrier) Material | Glass cloth |
| Total Thickness (Imperial) | 7 mil |
| Total Thickness (Metric) | 0.18 mm |
| Backing (Carrier) Thickness (Imperial) | 5 mil |
| Backing (Carrier) Thickness (Metric) | 0.13 mm |
| Adhesion to Steel (N/cm) | 4.9 |
| Adhesion to Steel (oz/in) | 44.78 |
| Tensile Strength (N/cm) | 324 |
| Tensile Strength (lb/in) | 185 |
| Elongation at Break | 3% |
| Product Color | White |
| Dielectric Strength | 2500 V |
| Insulation Resistance | 10³ MΩ |
| Electrolytic Corrosion Factor | 1.00 |
| Certifications | MIL-I-19166C, UL 510 |
| UL File | UL E20780, CSA LR94980 |
| Maximum Operating Temperature (Celsius) | 200 °C |
| Maximum Operating Temperature (Fahrenheit) | 392 °F |
| Adhesive Thickness (mm) | 0.0510 |
