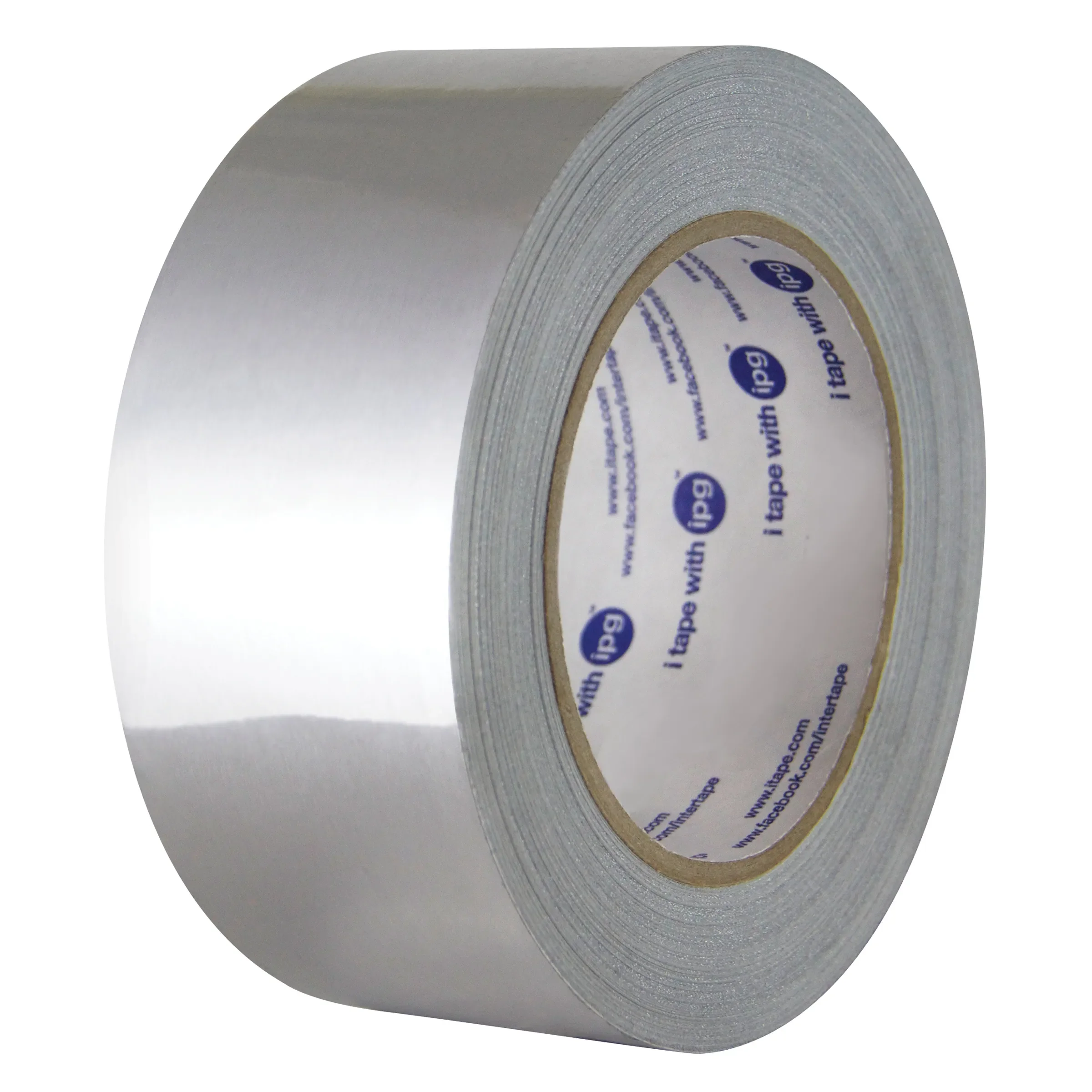

IPG® ALF150L Aluminum Foil Tape
ALF150L Utility Aluminum Foil Tape with Liner utilizes an aluminum foil backing combined with a high-tack, pressure-sensitive rubber-based adhesive. It is designed for seaming and sealing fiberglass duct board and duct wrap to maintain vapor barrier integrity and support consistent, professional installations. The aluminum backing provides reflective properties that assist with heat and light management.
Applications include: A variety of markets including HVAC, general manufacturing, appliance, transportation, aerospace, general industrial, and OEM assembly where reliable sealing performance is required.
- Aluminum foil backing provides reliable sealing and reflective performance for heat and light management
- High-tack, pressure-sensitive rubber-based adhesive supports secure bonding to fiberglass duct board and duct wrap
- Designed for seaming and sealing applications to maintain vapor barrier integrity
- Supplied with a white SCK release liner to support clean handling and converting
- Recommended minimum application temperature of 40°F (4°C)
- Suitable for HVAC applications and use across industrial, appliance, marine, and aerospace environments
- Supports a wide range of general-purpose sealing applications including duct systems, insulation, and sheet metal
| Property | Specification |
| Backing (Carrier) Material | 1.6 mil aluminum foil |
| Adhesive Material | 1.8 mil Synthetic Rubber/Resin |
| Total Thickness (Imperial) | 3.4 mil |
| Total Thickness (Metric) | 0.08 mm |
| Adhesion to Steel (D3330) | 95 oz/in |
| Tensile Strength (kPa) | 138 kPa |
| Tensile Strength (PSI) | 20 psi |
| Elongation at Break | 3% |
| Shielding Effectiveness (Average 300kHz - 2.5GHz) | |
| Product Color | Silver |
| Insulation Resistance | |
| Certifications | Tested in accordance with ASTM E84 and UL723 |
| Maximum Operating Temperature (Celsius) | 107°C |
| Maximum Operating Temperature (Fahrenheit) | 225°F |
| Minimum Operating Temperature (Celsius) | -18°C |
| Minimum Operating Temperature (Fahrenheit) | -0°F |
