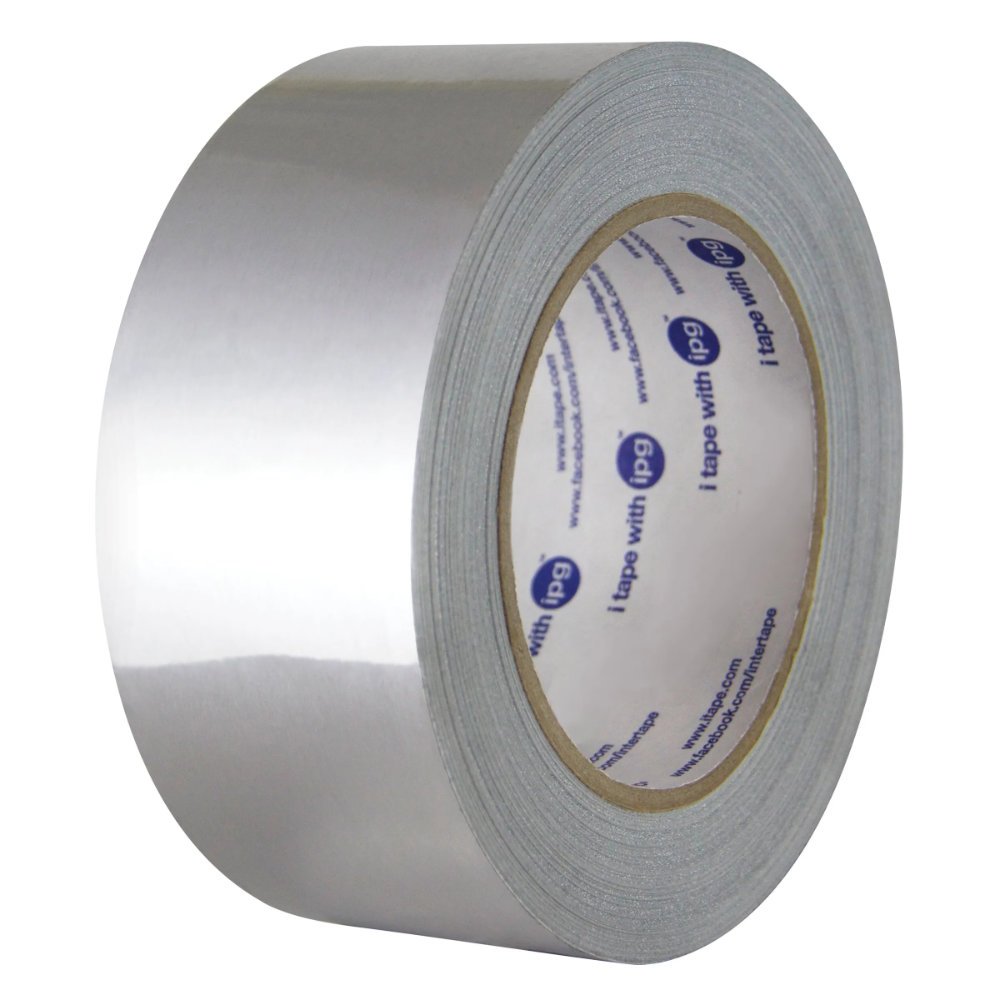

IPG® ALF175L Aluminum Foil Tape
IPG® ALF175L Aluminum Foil Tape is a cold-temperature foil tape engineered for demanding HVAC and industrial applications requiring reliable vapor sealing and long-term durability. Designed with a 1.8 mil aluminum foil backing, it delivers excellent reflective properties, high shear strength, and robust resistance to UV, mold, and extreme temperatures. This tape performs exceptionally well in both sub-zero and elevated heat environments, maintaining secure adhesion over time. A white 60# SCK release liner allows for clean handling during application.
Applications include: HVAC duct wrap and insulation seams, appliance, marine, aerospace, and industrial sealing tasks; any project requiring flame retardant and vapor barrier integrity.
- High shear strength and excellent long-term adhesion
- Strong UV, mold, and moisture resistance
- Flame retardant and vapor barrier integrity
- White 60# SCK release liner for clean handling and die-cutting
- Ideal for HVAC, marine, aerospace, and industrial sealing applications
| Property | Specification |
| Backing (Carrier) Material | 1.8 mil aluminum foil |
| Adhesive Material | 1.6 mil Acrylic |
| Total Thickness (Imperial) | 3.35 mil |
| Total Thickness (Metric) | 0.089 mm |
| Adhesion to Steel (D3330) | 70 oz/in |
| Tensile Strength (kPa) | 145 kPa |
| Tensile Strength (PSI) | 21 psi |
| Elongation at Break | 3% |
| Shielding Effectiveness (Average 300kHz - 2.5GHz) | |
| Product Color | Silver |
| Insulation Resistance | |
| Certifications | Tested in accordance with ASTM E84 and UL723 |
| Maximum Operating Temperature (Celsius) | 120°C |
| Maximum Operating Temperature (Fahrenheit) | 248°F |
| Minimum Operating Temperature (Celsius) | -32°C |
| Minimum Operating Temperature (Fahrenheit) | -25°F |
